UV경화기(EYE GRAPHICS)

Eye Cure Light Spot(200W) : UP200G

Spot light source for UV curing system

Features

  1. 1. UV inrradiation intensity : 2300 mW/cm2
  2. 2. A long-life xenon preset lamp(200W) is used, with a mean service life of 3000 hours.
  3. 3. The program control feature maintains the UV inradation intensity at an almost constant level.
  4. 4. The lamp eliminates adjustment of the potical axis.
  5. 5. The UV irradiation intensity can be controlled continuosly with a control knob.
  6. 6. The UP200G is equipped with a cumulative lamp irradiation time counter.
  7. 7. The Up200G is eqipped with a timer and shutter assembly and remote control function.
  8. 8. The UP200G includes a 1-m long ultraviolet fiber with a superior UV transmission factor.

UV Meter : UVPF-A1

EYE cumulative UV irradiation intensity tester

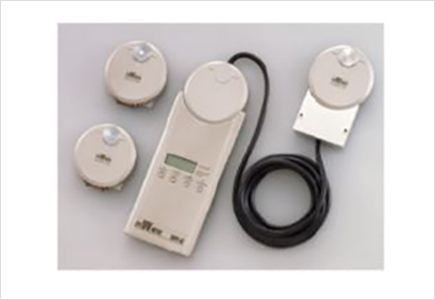

  • The Picture shows a combination of available
    components(including options).

Features

  1. 1. When purchasing the instrumnent, select a beam sensor that suits the intended application.
    By changing the beam sensor, various wavelengths can be measured.
    - For UV curing(with visible rays), a 365 nm or 405nm beam sonsor is the best choice.
    - For UV cleaning, modifying,m and sterilization, a 254 nm beam sesor is the best choice.
  2. 2. Since a cord-free desigh is employed, the UVPF-A 1 can be transported to measure ultraviolet rays at any location.
    By using an optional 2m cable, remote measurement is available.
  3. 3. The instrument offers a higher response. Accurate measurement is achievable even at high speeds.
  4. 4. With the readout calibration function, readings from conventional instruments can be corrected.
  5. 5. Data can be output via the optional dedicated RS-232C Cable.
  6. * The UVPC-A1 is an industrial UV tester. The instrument does not display the absolute irradiation intensity unless a calibrated light source is used.
    We recommend that you use the UVPF-A1 to control ultraviolet rays based on relative value, for example, control of the lamp power ratio.

Specification

UV Specification
25 heads(PD-254) 36 heads(PD-365) 40 heads(PD-405)
Measurable wavelength range 240~280nm 300~390nm 350~490nm

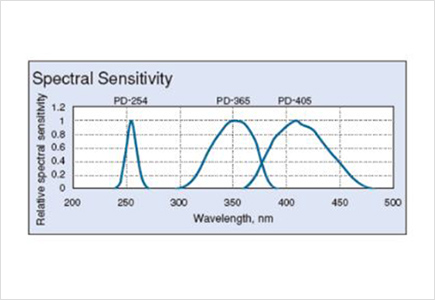

Peak snsitivity wavelength Approx.255nm Approx.350nm Approx.410nm
Data display 5-digitLCD
Detector element Silicon photodiode
Measurement range 3 ranges(manually selected)
Measurement range Accumulated dose 0.01~99999 mJ/cm2 0.02~99999 mJ/cm2 0.01~99999 mJ/cm2
Irradiation intensity 0.01~3000 mW/cm2 0.02~6000 mW/cm2 0.01~3000 mW/cm2
Analog output Output level 0 to 2 VDCmax(common to all ranges)
Response speed 50 Hz : 10 ms, 60 Hz : 8.33 ms(selectable)
Digital output RS-232C
Service conditions Temperature 10℃ to 60℃(continuous)
Humidity 85% RH, max, (Nocondensation permitted)
Calibration accurary ±2%(against the standard at 23℃)
Function
  • - Readout calibration
  • - Battery caltage drop warning
  • - Detection of deviation from service temperature range
  • - Auto power-off
Power supply Alkaline battery(size AAAA) X 4ea.
Dimensions Apprax. 75(W) X 202(D) X 15(H)mm
Weight Main unit : Approx. 350g, Beam sensor : Approx. 100g
Accessories Heat protective cover, analog output conector, carrying case, batteries, and instruction manual
